Introduction of outside airIntroduction of outside air - Heater/Manual air conditioning* - For pleasant driving - Mitsubishi Carisma Owner's Manual - Mitsubishi Carisma

To introduce air into the vehicle during hot weather, set the air selection switch

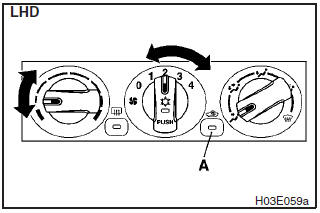

To introduce air into the vehicle during hot weather, set the air selection switch (A) to the outside position and set the temperature control dial to the position shown in the illustration. Be sure to set the temperature control dial all the way to the left. Select the desired blower speed.

NOTE

Turn the mode selection dial clockwise and air will flow to the leg area and the windscreen.

Cooling (Vehicles with air conditioning)
